pure::variants Integration

Info

The pure::variants integration can be used to:

  • Use pure::variants in a browser
  • Use the pure::variants connector for Capella in a browser
  • Manage licenses as a self-service on a project level

Setup of pure::variants Integration

Warning

The setup can only be performed by administrators. If a user wants to get access, please refer to Get access to the pure::variants license as user

Set License Server URL and Upload license.lic

  1. Navigate to Menu > Settings
  2. Select pure::variants in the Integrations section.
  3. Modify the floating license server URL and confirm with Update.
  4. Upload the license.lic license file.

Add the pure::variants Tool to your Instance

  1. Navigate to Menu > Settings
  2. Select Tools in the Core functionality section.
  3. Click Add a tool
  4. Enter any tool name, e.g., Capella + pure::variants
  5. Specify the image for the persistent workspace. More information in the Capella Docker images documentation: Capella + pure::variants
  6. Read-only workspaces and backup images are not supported. Leave the fields empty.
  7. Click on Create
  8. Enable the pure::variants integration and additional integrations if applicable.
  9. Add tool versions (if using Capella + pure::variants, please use the Capella version for a proper matching with the TeamForCapella server version.)
  10. Add tool natures if applicable. If not tool nature is applicable, use a placeholder.

Whitelist a Model for pure::variants

  1. Open the project perspective of a selected project.
  2. If you don't have model with the pure::variants tool yet, create one.
  3. Click on the model restrictions icon:
    Model restrictions

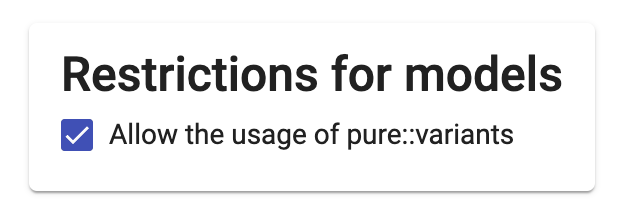

  4. Enable Allow the usage of pure::variants.
    Model restrictions
  5. All members of the project should now have access to the pure::variants license server.

Get Access to the pure::variants License as User

You have to get access to a project with at least one pure::variants whitelisted model. More information: Get access to a project. If you need a new pure::variants whitelisted model, please ask your administrator.
