Upload Images to TeamForCapella

1. Upload the image into your personal session workspace via the file browser upload: Upload files
2. Connect to the TeamForCapella repository: Connect to a TeamForCapella repository

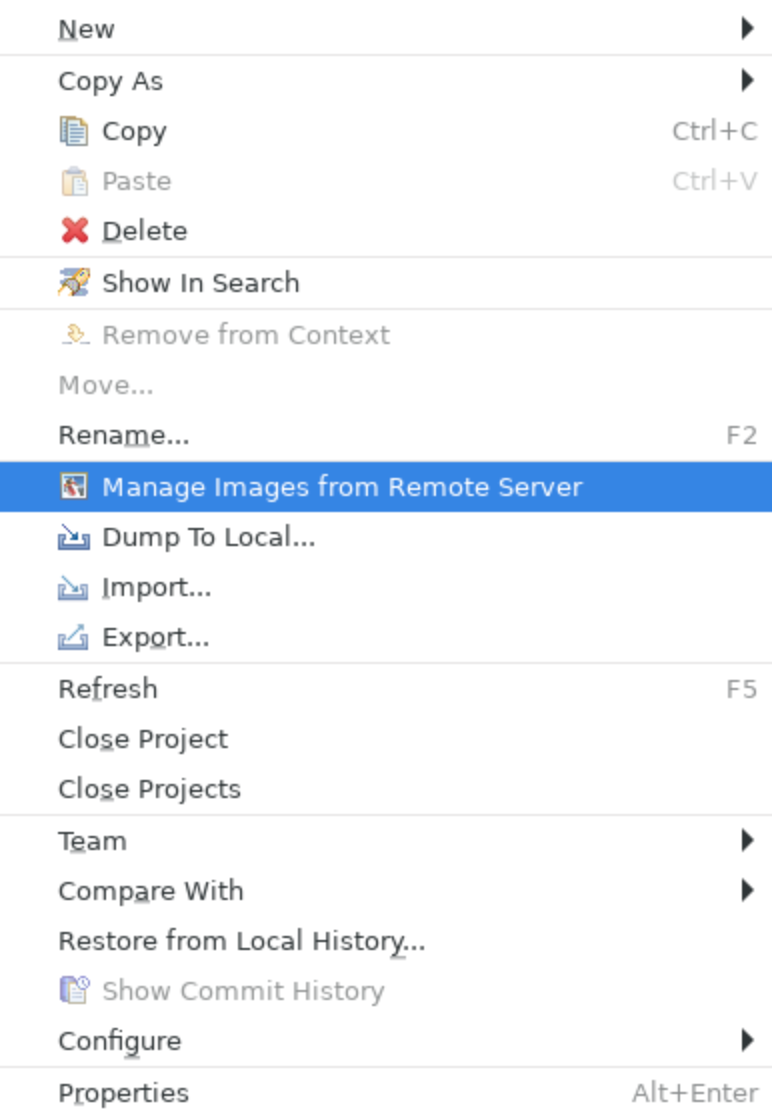

3. Right-click on the .team project and select Manage Images From Remote Server:

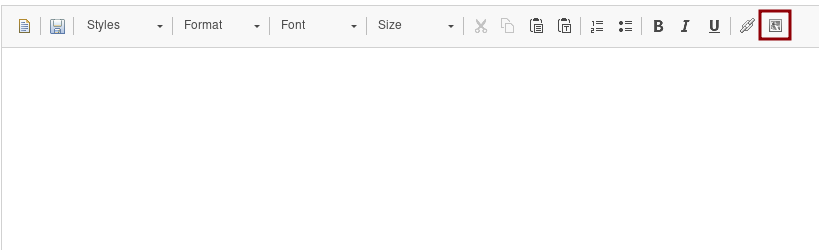

   Alternatively, you can also open the dialog via the image icon from the description editor:

4. Choose the project name on the left side, expand it and select the folder Images.

   Important

   Do not upload images in the *.team project! Use the project name without the .team suffix. Otherwise, images are not available after exports of the model.

   Project or folder not listed?

   If the project is not listed, you can create a new project:

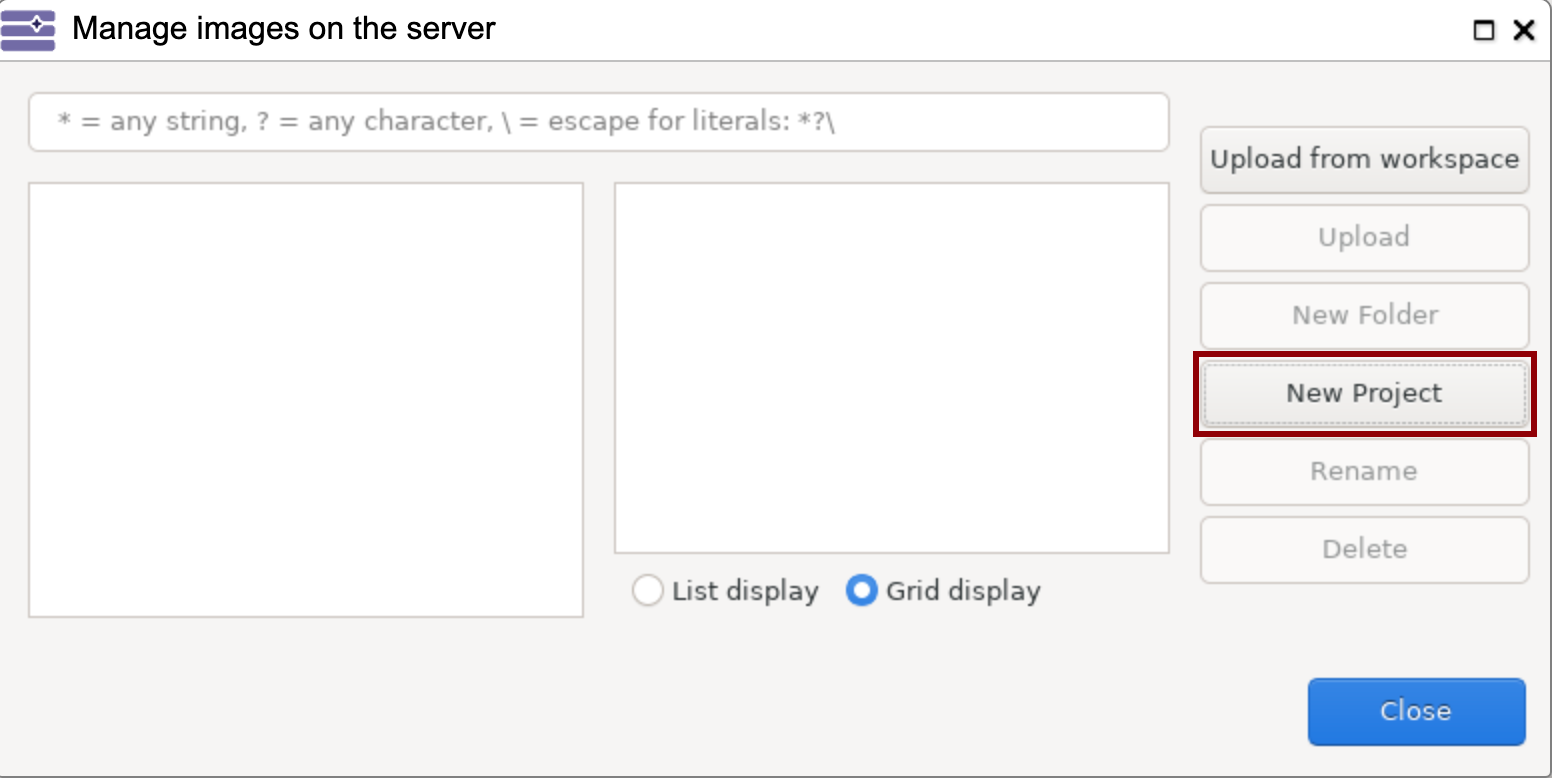

   1. Click New Project on the right side:

   2. Enter the project name without the .team suffix. Make sure that the project name matches exactly.
   3. Confirm with Ok.

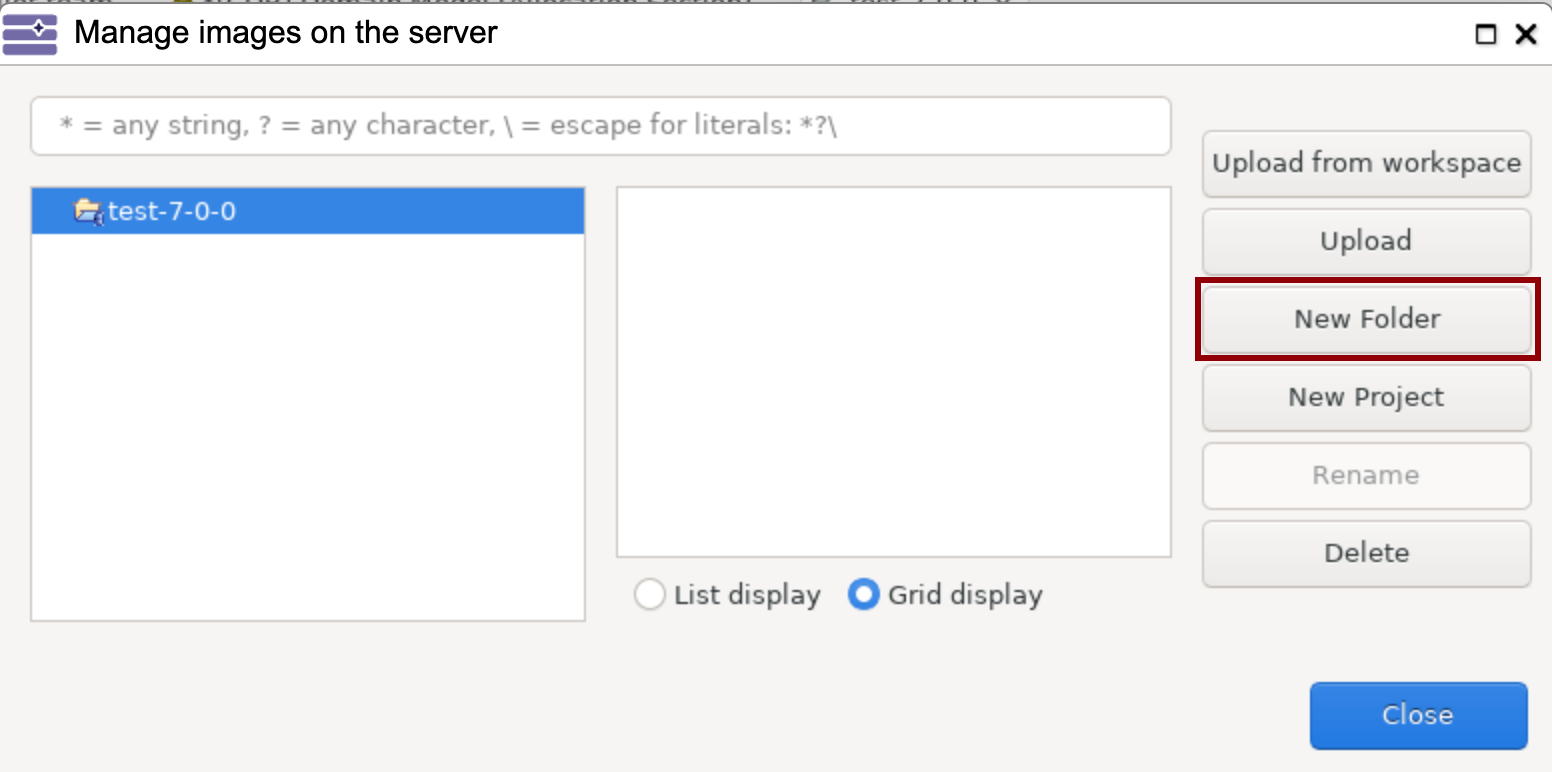

   4. In the new project, create a new folder with New Folder:

   5. Enter Pictures as name of the new folder and confirm.

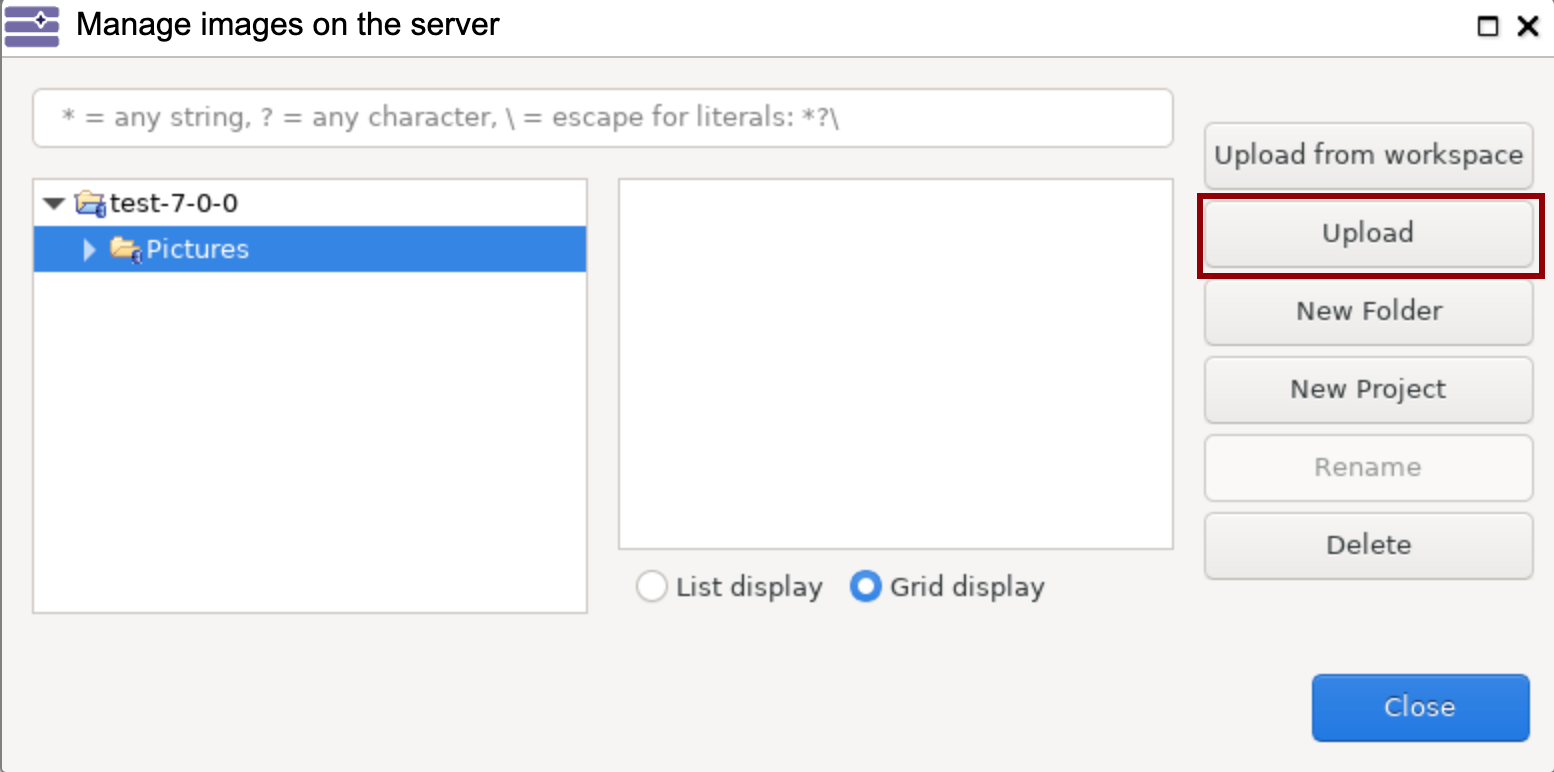

5. Upload the images via the Upload button:

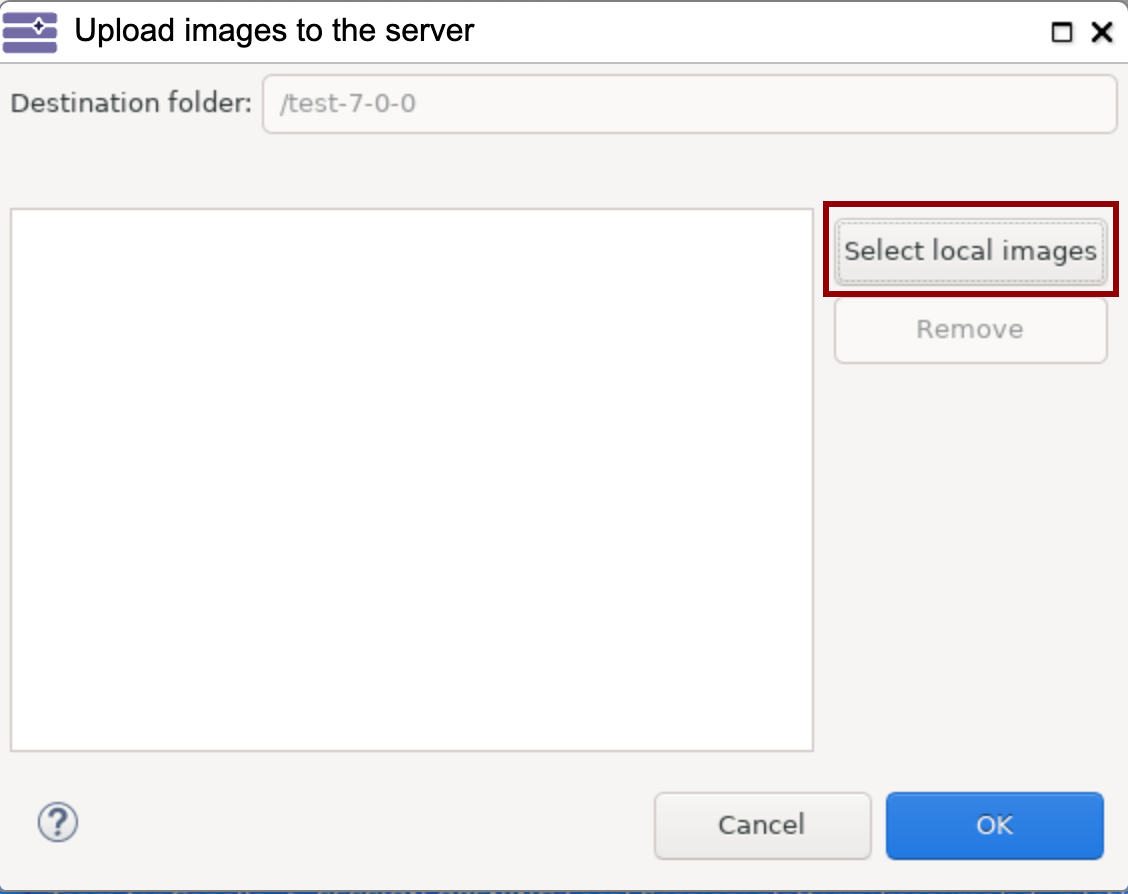

   1. In the open dialog, select Select local images:

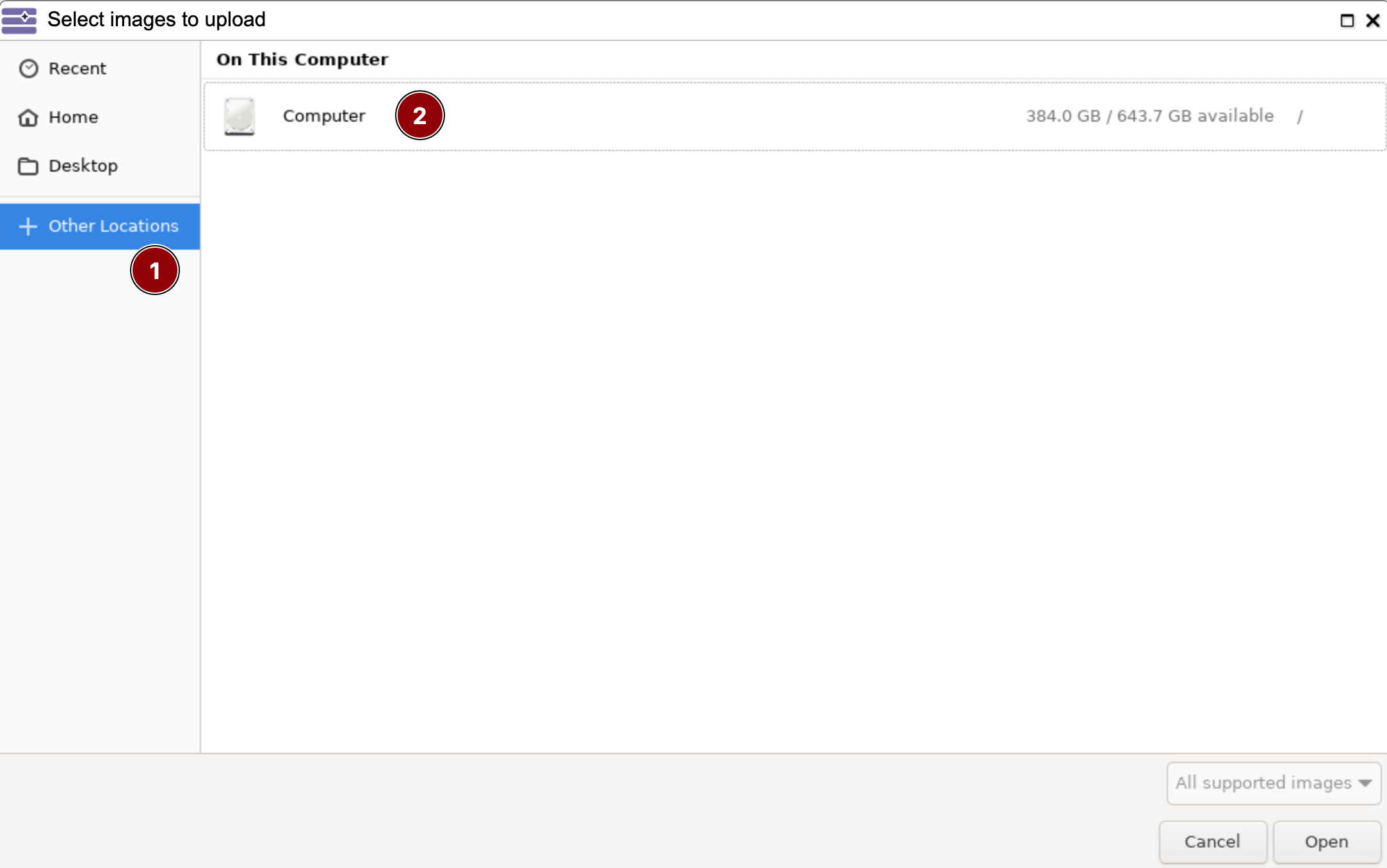

   1. Select Other Locations and Computer:

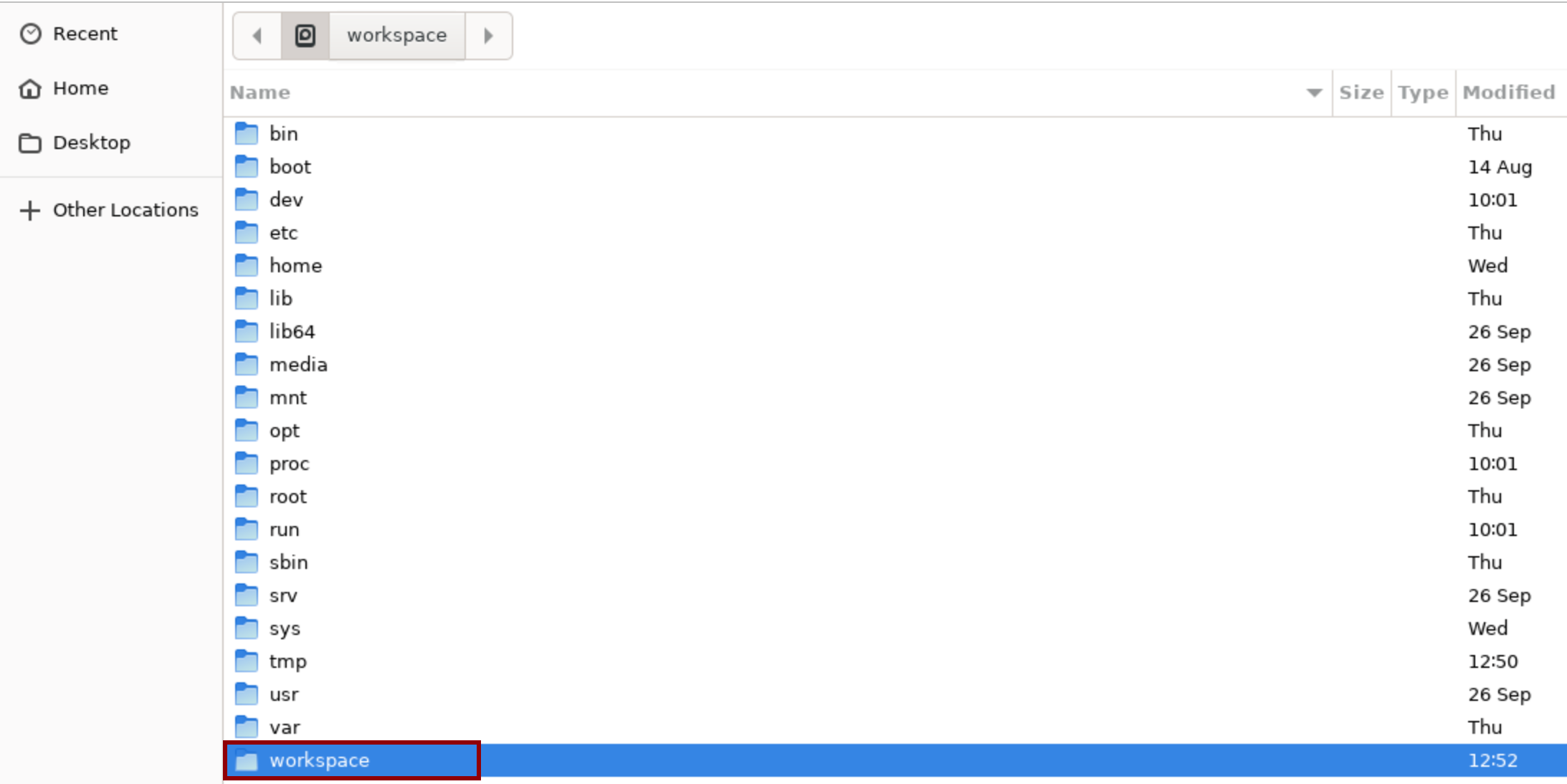

   2. Select workspace:

   3. In this folder you can see the files uploaded via the File Browser. Select the images to upload and click Open.

   4. Confirm with Ok

6. Once uploaded, the images can be embedded using the description editor.

7. Commit the changes on the server.
